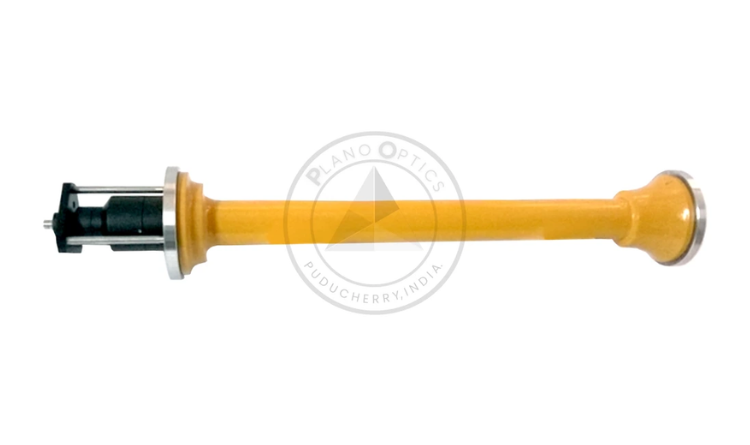

Gun Barrel Collimator & Telescope
View Details
Gun Barrel Collimator & Telescope
Specifications
×
Specification
Details
Focal Length
600 mm
Lens Clear Aperture
35 mm
Barrel Length
690 mm
Flange Diameter to Suit Barrel Diameters
105, 120, 125 & 155 mm -0.01, -0.02
Optical Axis & Mechanical Aligned To
< 3 secs
Concentricity of Mech & Optical Axis
< 10 microns
Field of View
60 minutes
Range of Measurements
10 mm
Resolution
10 microns (3.6 secs)
Readout
Dual Axis, Micrometer/Digital Dial Indicator
Collimator Light Source
LED, 220V
Subject to technical changes
