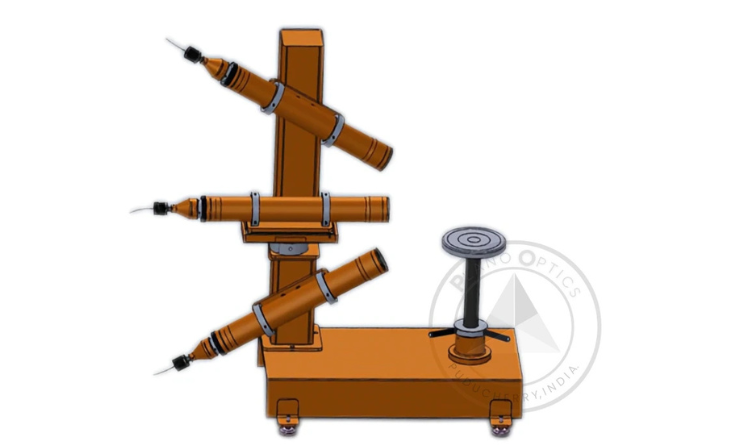

Collimator For Theodolite Testing

Parameter	Value
Focal length	430 mm
Clear aperture	38 mm
Tube length	430 mm
Field of view	2°
Minimum reticule resolution	40ʺ
Angle between two tubes	30° ± 15ˈ
Sensitivity of plate bubble	10 sec per division
Total Measurement Range	HZ: ± 40ˈ; V: ± 40ˈ
Operating Height (UP and Down)	100 mm to 260 mm
Power supply	Input: 100 to 240 v, Output: 3 to 5 V
Collimator Net Weight	61 Kgs Approx.
Micro adjusting Range	Left & Right (X Axis): 1ʺ Back & Forth (Y Axis): 1ʺ
Dimensions	900 mm(L) x 420 mm(B) x 1000 mm(H)

Subject to technical changes
