Optical Components
High-performance optical components for precise measurements.
Optical Flats
Optical Flat is used as a reference surface for the detection of inaccuracies of unknown flat surfaces that are polished. Optical Flats are used in Calibration labs for inspection of Micrometer Anvils & Mechanical Seals, Pump Valves and various other Automotive Parts manufacturers.
Fused Silica or a clear Fused Quartz is used in many applications as the material has environmental durability, a low coefficient of thermal / linear expansion and as well resistant to abrasion. We offers Flatness to »/4 (0.15µm), »/6 (0.10µm), »/10 (0.06µm) and »/20 (0.03µm) Flatness with Single & Double surface flatness.
Plano Optics also offers Customized flats with holes or different shapes, sizes
Optical Flats in Optical Glass are available from Stock. Fused Quartz Optical Flats quote will be provided against specific enquiries.
Specifications
- Material : BK-7 Optical Glass / Fused Quartz
- Accompanied by Flatness Inspection Report
- Inspection in Laser Fizeau Interferometer
- Reference Flat (»/20) traceable to NIST.
- Evaluation of Flatness with Licensed Quick Fringe Software
- Cosmetic Defects : According to US MIL Std
- Supplied in Wooden Box
Optical Prisms
Specifications
| Material | BK-7 & UVFS |
| Surface Flatness | λ/2 – λ/20 @ 633 nm |
| Surface Quality | 40-20, 60-40 & 80-50 scratch and dig |
| Angle Tolerance | ±1 arc sec to ±10 minutes |
| Pyramidal Error | ±5 arc sec to ±10 minutes |
| Dimensional Tolerance | ±0.02 to ±0.25 mm |
| Prism Size | Strat from 2 to 100 mm |
| Clear Aperture | 90% |
| Coating | MgF2, Al+Sio & Dielectric coating |
Optical Wedge
Specifications
| Material | BK-7 & UVFS |
| Surface Flatness | λ/2 – λ/10 @ 633 nm |
| Surface Quality | 40-20, 60-40 & 80-50 scratch and dig |
| Wedge Angle Tolerance | 1º to 10º |
| Dimensional Tolerance | ±0.02 to ±0.25 mm |
| Prism Size | Strat from 15 to 100 mm |
| Clear Aperture | 90% |
| Coating | Unocated, MgF2, Laser V coating |

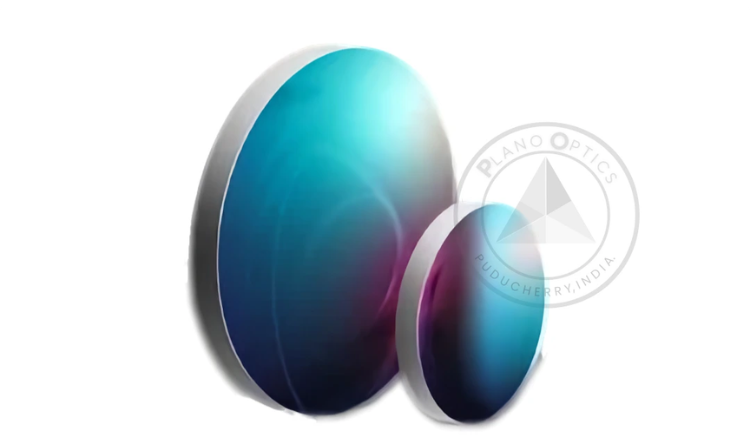

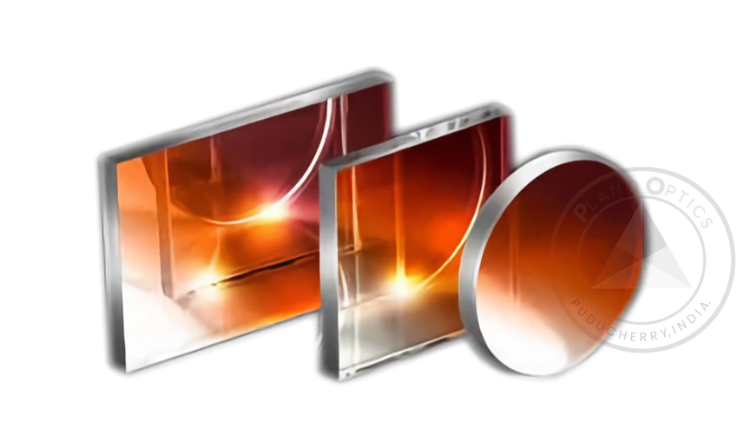

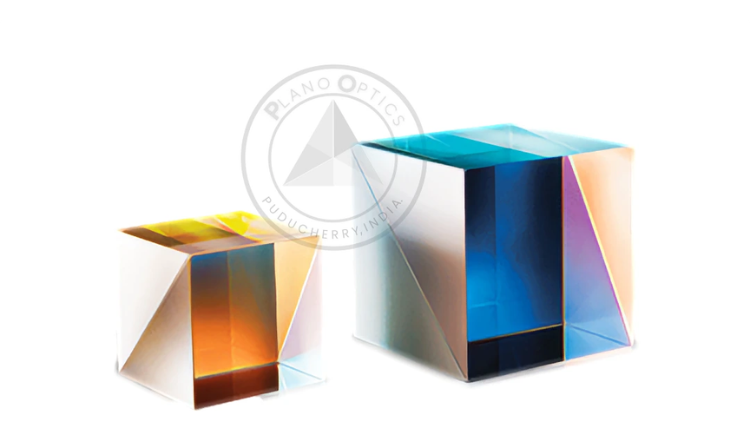

Beam Splitters
Specifications
| Material | BK-7 & UVFS |
| Surface Flatness | λ/2 – λ/10 @ 633 nm |
| Surface Quality | 40-20, 60-40 & 80-50 scratch and dig |
| Parallelism | 1” - 10' |
| Dimensional Tolerance | ±0.02 to ±0.25 mm |
| Prism Size | Strat from 5 to 100 mm |
| Clear Aperture | 90% |
| Reflection/Transmission | 50/50, 70/30 |
| Coating | Unocated, MgF2, |

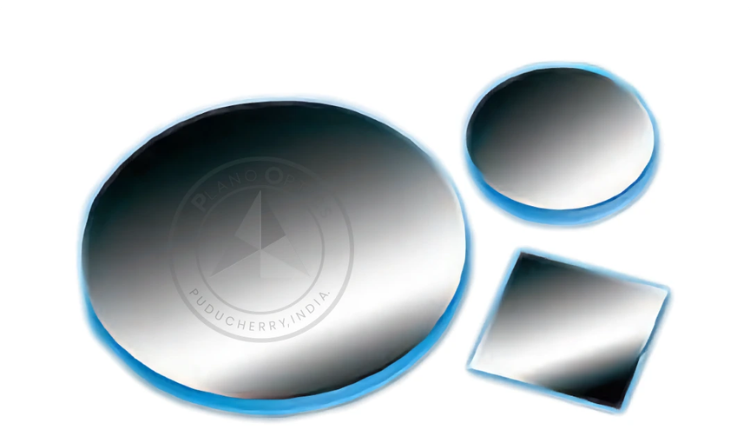

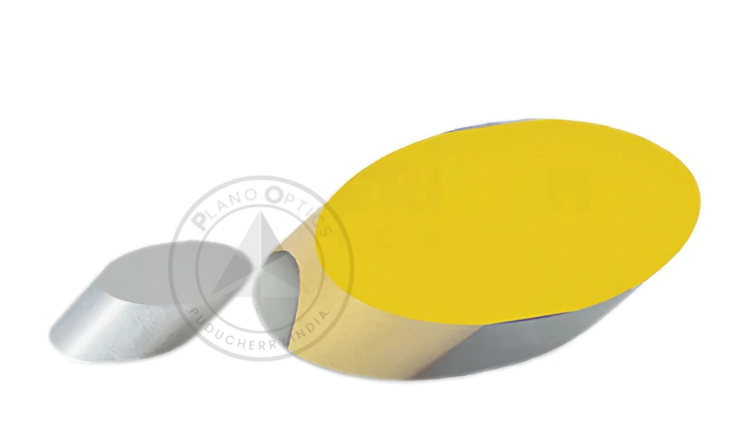

Optical Mirrors
Specifications
| Material | BK-7, Float Glass & UVFS |
| Surface Flatness | λ/2 – λ/10 @ 633 nm |
| Surface Quality | 40-20, 60-40 & 80-50 scratch and dig |
| Parallelism | 1” - 10' |
| Dimensional Tolerance | ±0.02 to ±0.25 mm |
| Prism Size | Strat from 5 to 300 mm |
| Clear Aperture | 90% |
| Reflection/Transmission | 50/50, 70/30 |
| Coating | Al+Sio & Broad band Dielectric Coating |

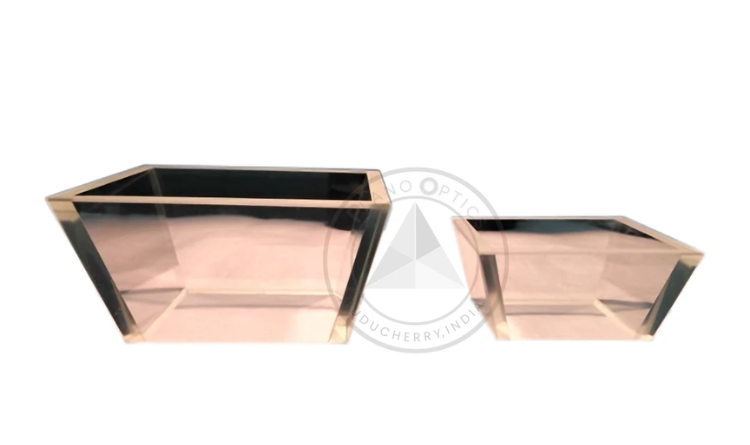

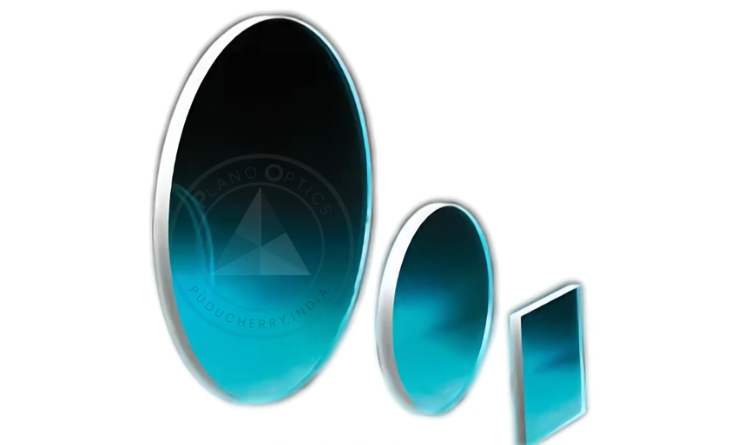

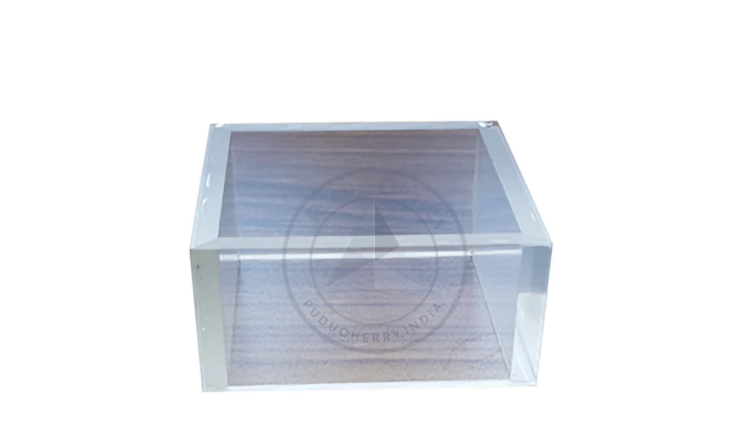

Optical Windows
Specifications
| Material | BK-7, Float Glass & UVFS |
| Surface Flatness | λ/2 – λ/10 @ 633 nm |
| Surface Quality | 40-20, 60-40 & 80-50 scratch and dig |
| Parallelism | 1” - 10' |
| Dimensional Tolerance | ±0.02 to ±0.25 mm |
| Prism Size | Strat from 5 to 300 mm |
| Thickness | 0.5 – 50 mm |
| Clear Aperture | 90% |
| Reflection/Transmission | 50/50, 70/30 |
| Coating | Mgf2 |
